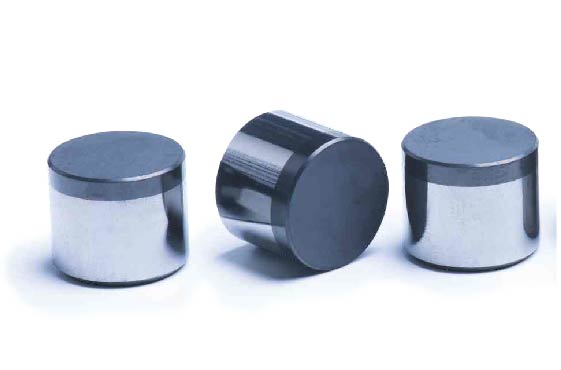

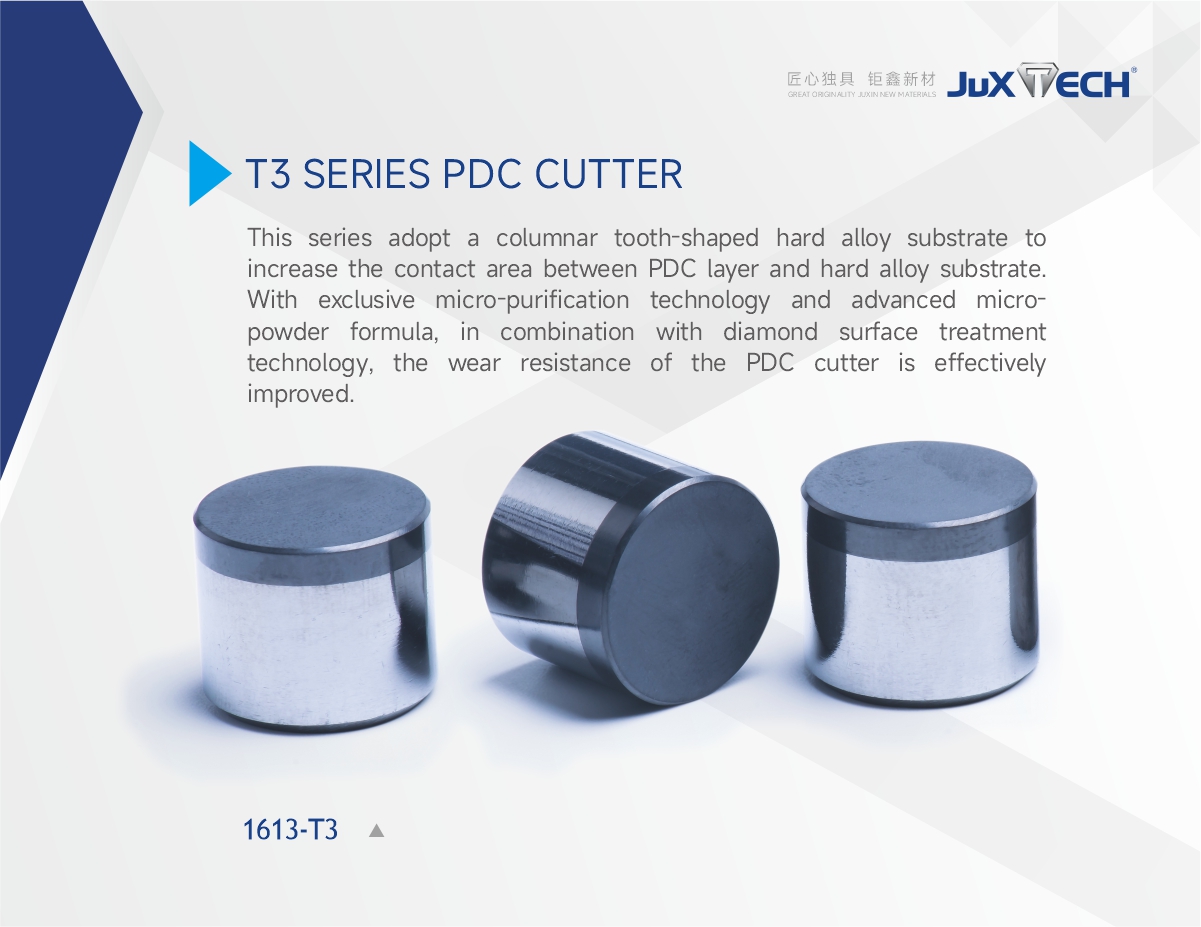

T3 series PDC Cutter: adopting an interface of cylindrical tooth-shaped carbide substrate to improve the contact area between diamond and substrate and exclusive micro-powder purification process and advanceddiamond grade recipe, the wear resistance of th
1613-T3 |
|
Diameter: |
16.00±0.02mm |
Hight: |
13.20±0.05mm |
Table Size: |
2.0±0.2mm |
Impacts: |
50 J x10times |
VTL: |
120-150 pass |
Heating Test: |
750°C 10min |
