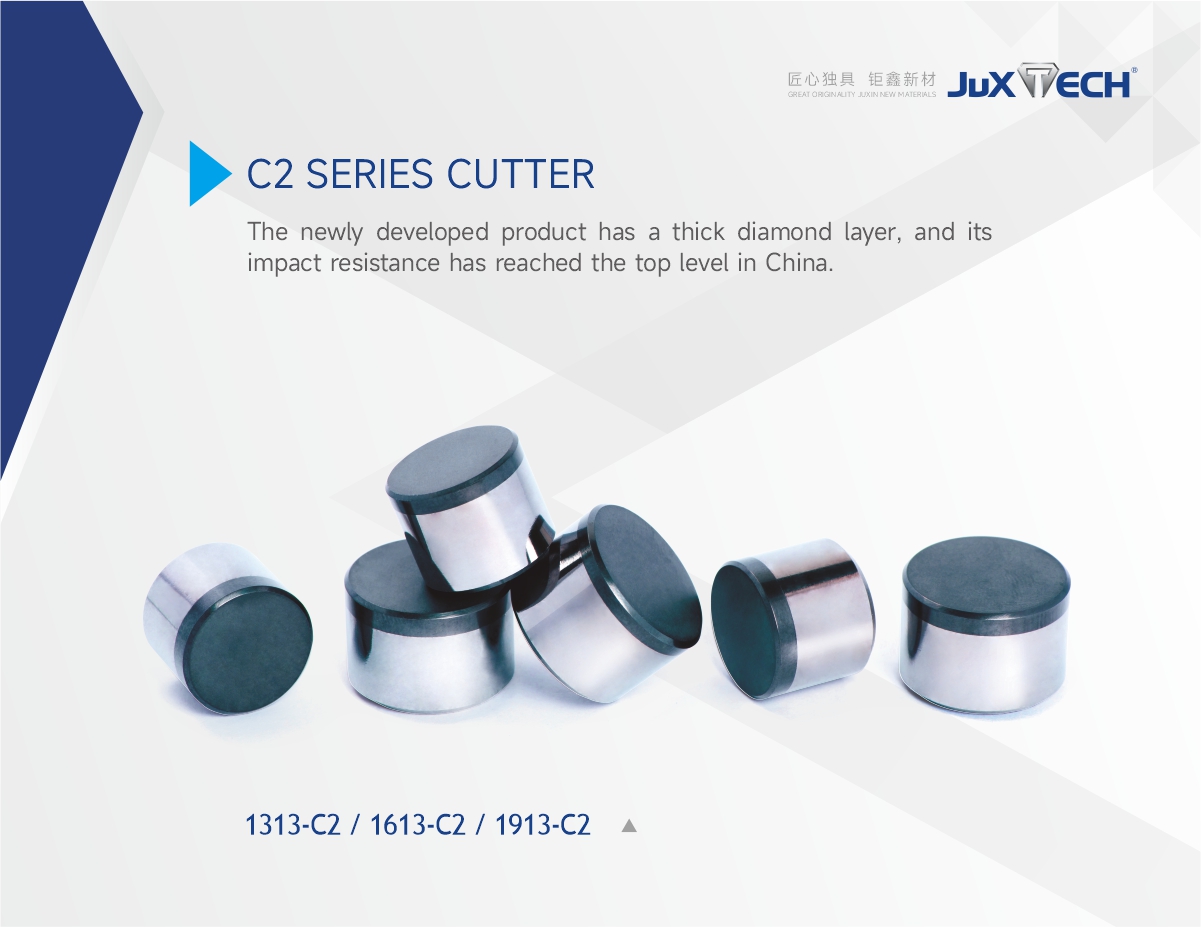

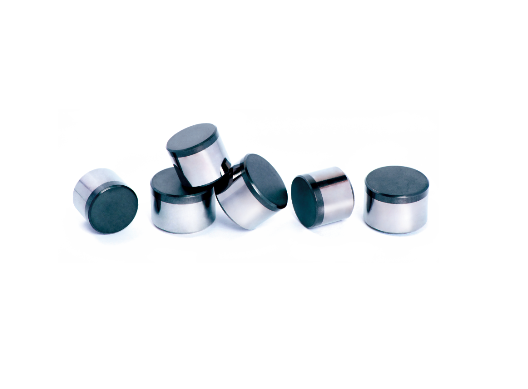

C2 SERIES CUTTER:The newly developed product has a thick diamond layer, and its impact resistance has reached the top level in China.
1313-C2
Diameter: 13.44±0.02mm
Height: 13.20±0.05mm
Table height: 2.4±0.2mm
Impact: 45J×45 times
VTL: ＞300
High- temperature Resistance: 750 °C 10 min
Diameter: 15.62±0.02mm
Height: 13.20±0.05mm
Table height: 2.4±0.2mm
Impact: 50J×45 times
VTL: ＞300
High- temperature Resistance: 750 °C 10 min
Diameter: 19.05±0.02mm
Height: 13.20±0.05mm
Table height: 2.4±0.2mm
Impact: 56J×45 times
VTL: ＞400
High- temperature Resistance: 750 °C 10 min
