Product Introduction

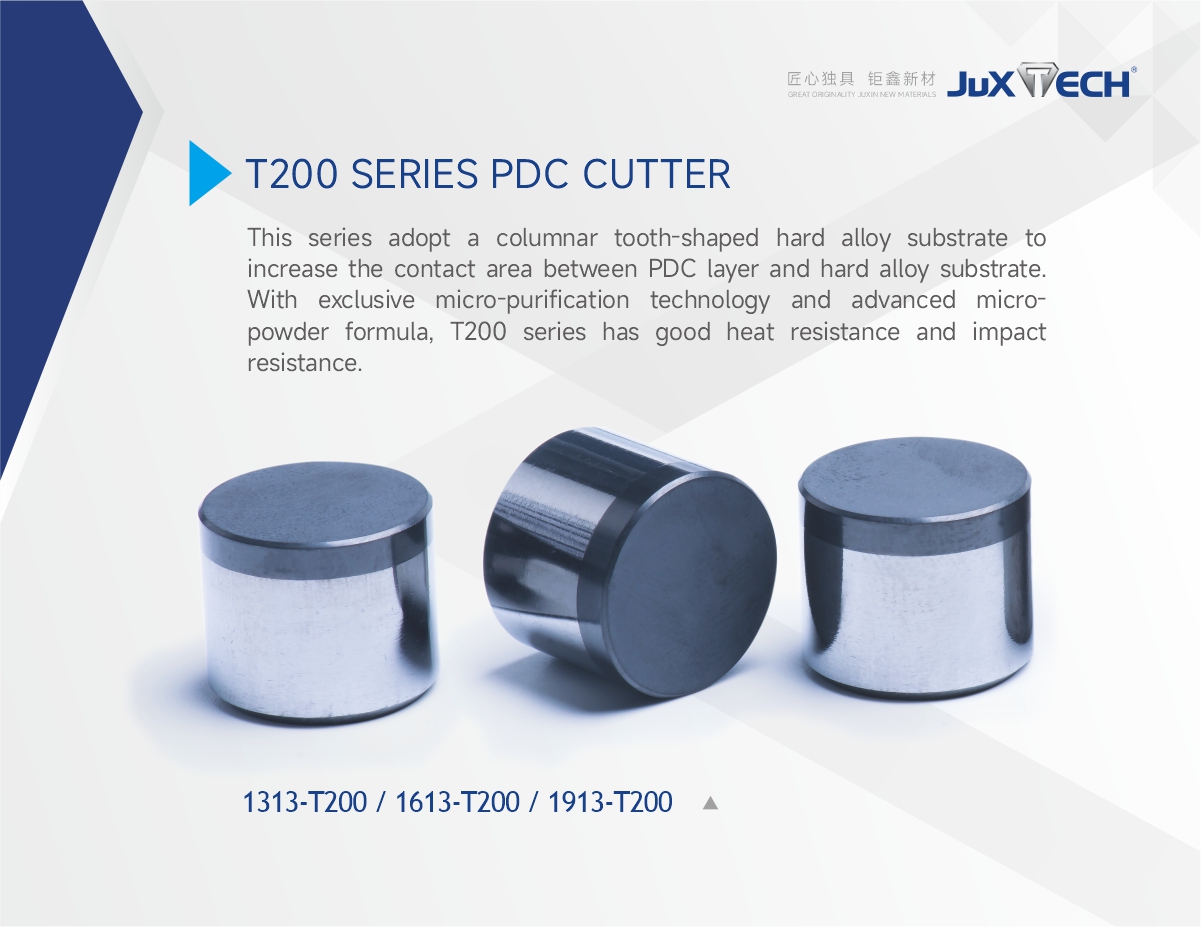

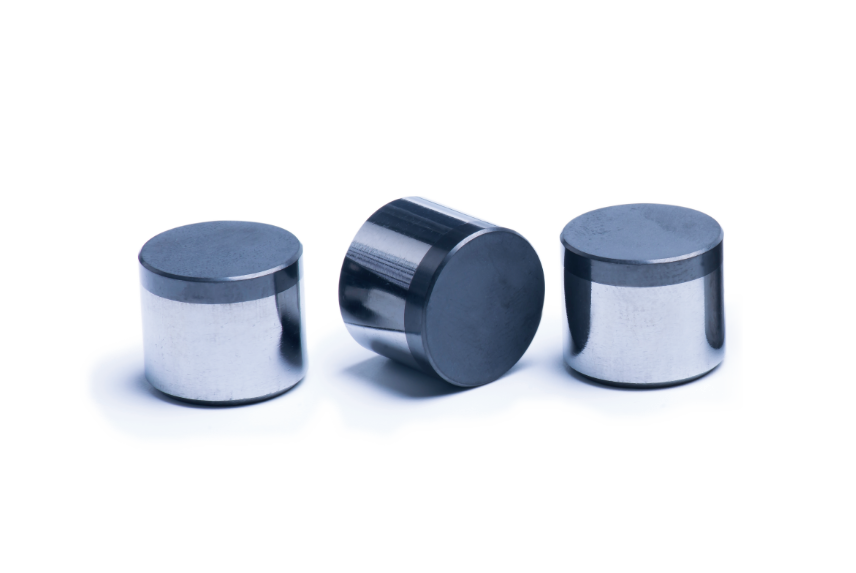

T200 SERIES PDC CUTTER:This series adopt a columnar tooth-shaped hard alloy substrate to increase the contact area between PDC layer and hard alloy substrate. With exclusive micro-purification technology and advanced micro-powder formula, T200 series has

product name:T200 SERIES PDC CUTTER
Release time:2023-03-31 09:05:00
Times of browsing:
  • 1313-T200

    Diameter: 13.44±0.02mm
    Height:  13.20±0.05mm
    Table height: 2.0±0.2mm
    Impact: 45J×45 times
    VTL: >60
    High- temperature Resistance: 750 °C  10 min

    1613-T200

    Diameter: 15.88±0.02mm
    Height:  13.20±0.05mm
    Table height: 2.0±0.2mm
    Impact: 50J×45 times
    VTL: >60
    High- temperature Resistance: 750 °C  10 min

    1913-T200

    Diameter: 19.05±0.02mm
    Height:  13.20±0.05mm
    Table height: 2.0±0.2mm
    Impact: 60J×45 times
    VTL: >60
    High- temperature Resistance: 750 °C  10 min
