Product Introduction

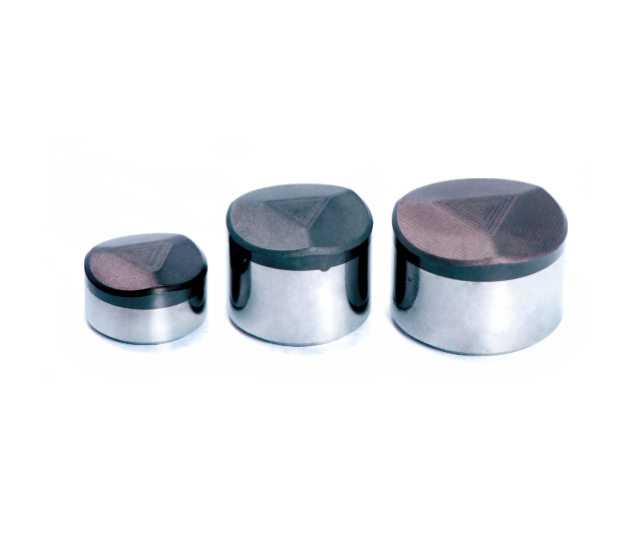

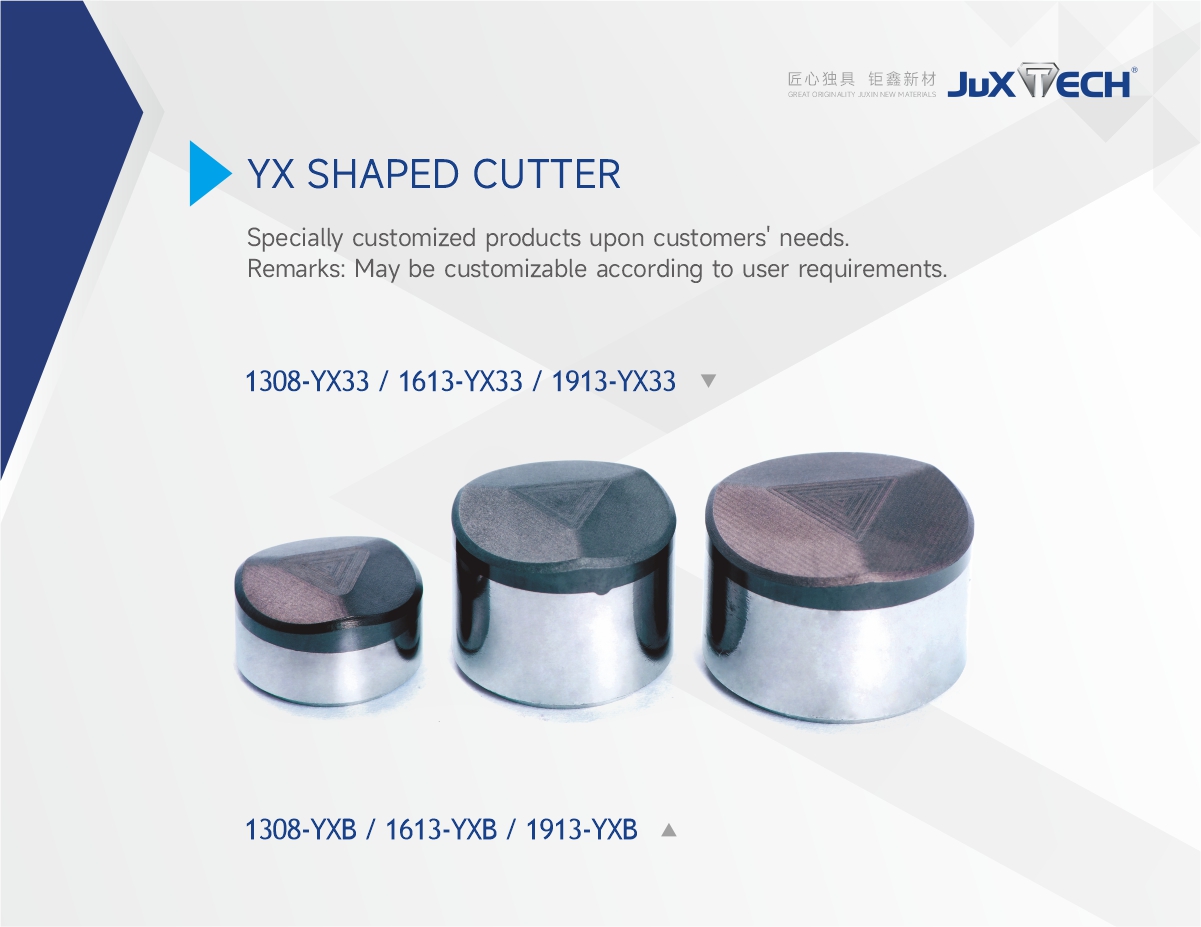

YX SHAPED CUTTER:Specially customized products upon customers' needs. Remarks: May be customizable according to user requirements.

product name：YX SHAPED CUTTER
Release time：2023-03-31 09:15:00
Times of browsing：
Product details parameters

  • 1308-YX33

    Diameter: 13.44±0.02mm
    Height: 8.00±0.05mm
    Table height: 3.0±0.2mm
    Impact: 45 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min



    1613-YX33

    Diameter: 15.88±0.02mm
    Height: 13.20±0.05mm
    Table height: 3.0±0.2mm
    Impact: 50 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min


    1913-YX33

    Diameter: 19.05±0.02mm
    Height: 13.20±0.05mm
    Table height: 3.0±0.2mm
    Impact: 60 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min

    1308-YXB

    Diameter: 13.44±0.02mm
    Height: 8.00±0.05mm
    Table height: 3.0±0.2mm
    Impact: 45 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min



    1613-YXB

    Diameter: 15.88±0.02mm
    Height: 13.20±0.05mm
    Table height: 3.0±0.2mm
    Impact: 50 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min



    1913-YXB

    Diameter: 19.05±0.02mm
    Height: 13.20±0.05mm
    Table height: 3.0±0.2mm
    Impact: 60 J×10 times
    VTL: ＞150
    High- temperature Resistance: 750 °C  10 min
