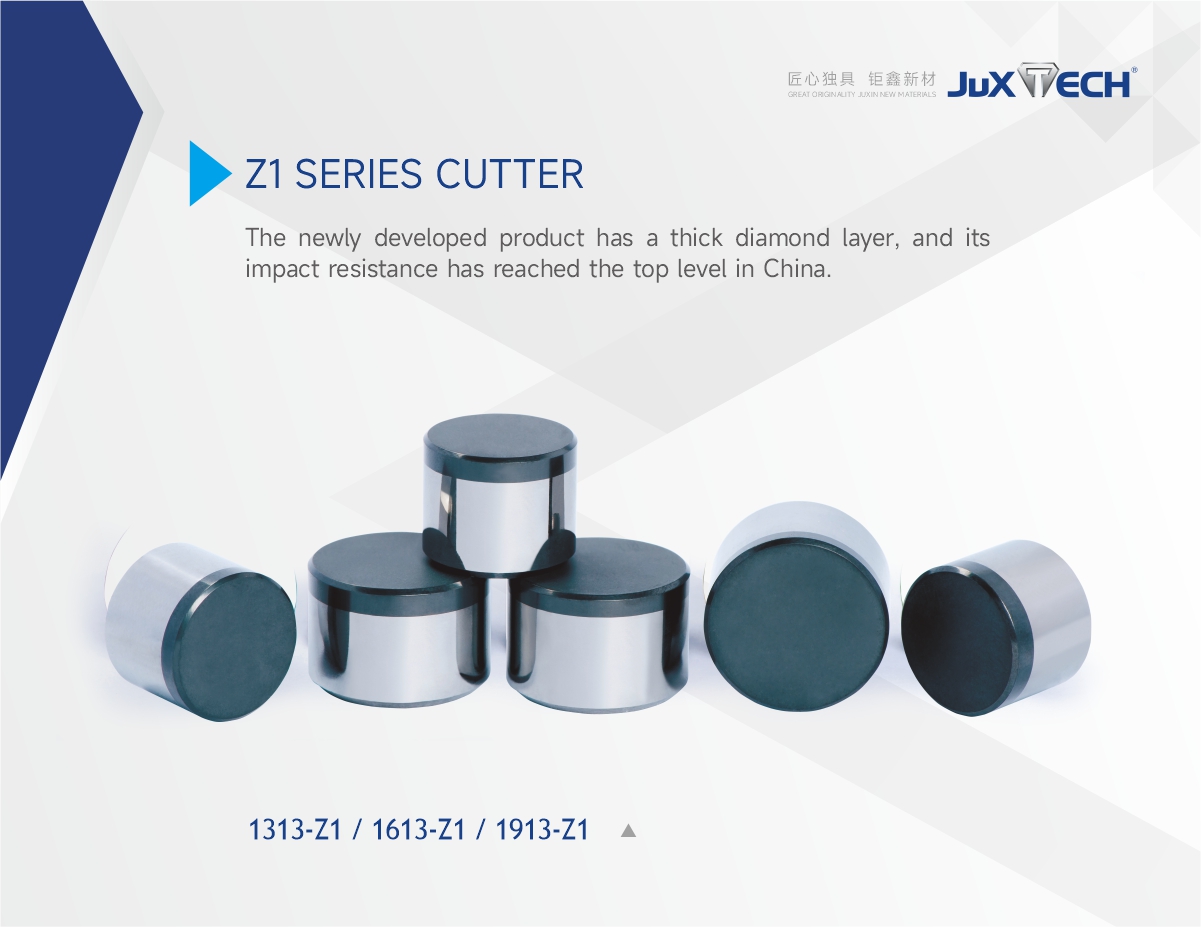

1313-Z1

Diameter: 13.44±0.03mm
Height: 13.20±0.05mm
Table height: 2.3±0.2mm
Impact:45J×45 times
VTL: ＞300
High- temperature Resistance: 750 °C  10 min

1613-Z1

Diameter: 15.88±0.02mm
Height: 13.20±0.05mm
Table height: 2.3±0.2mm
Impact: 50J×45 times
VTL: ＞300
High- temperature Resistance: 750 °C  10 min

1913-Z1

Diameter: 19.05±0.03mm
Height: 13.20±0.05mm
Table height: 2.3±0.2mm
Impact: 60J×45 times
VTL: ＞300
High- temperature Resistance: 750 °C  10 min
